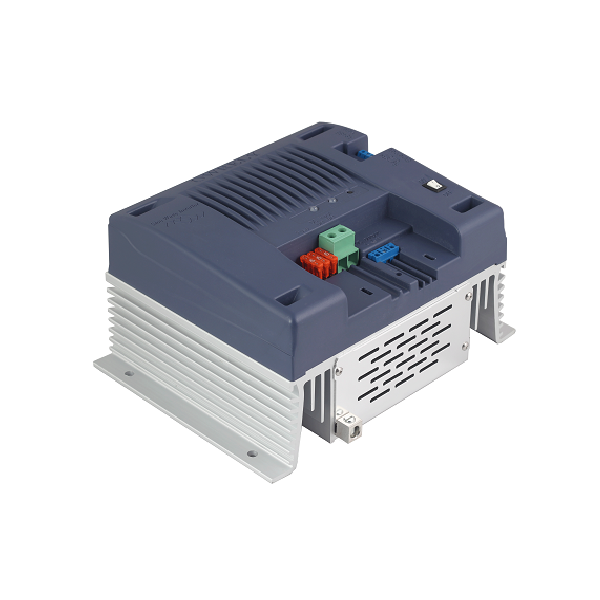

Puresine Plus series inverters
Manufacture of industrial product design, power frequency design, better overload capacity and high reliability;
No fan design;
- harmonic;
The basic function of inverter: DC power into AC power, pure sine wave;
- standby function: users can use standby function to reduce power consumption from the inverter;
A variety of communication interfaces: RS485, RJ45 network port, Meter and so on, to meet the different environment of communication needs;
The inverter: built-in clock timing mode can be flexibly set load working time;
FLASH - 4M bytes can be stored for at least 5 years operating data system;
- with the OWRELY family, Smart Meter, Owrely-RD controller, easy realization of photovoltaic power generation system.
Puresine Lite PP-200A-12/24 PP-450A-12/24/48
@25 C 150VA 300VA continuous power
The 30 minute power @25 C 200VA 450VA
5 seconds power @25 C 350VA 750VA
Rated DC input voltage: DC input voltage range of 12V: 9.5-15.5V 12V: 9.5-15.5V
24V: 21-32V 24V: 21-32V
48V: 42-64V 48V: 42-64V
Pure sine wave output waveform
Cooling radiator
Rated output voltage and frequency of 220Vac + 5% and 110Vac + 5%, 50Hz & 60Hz
Communication port RS485 (isolation) /USB interface RS485 (isolation) /USB/ network port
Electrical protection reverse polarity protection, overload and short circuit protection, high voltage and low voltage disconnect protection, high temperature protection circuit breaker
The highest efficiency of 12V: 92%
24V: 93%
48V: 94%
Working environment temperature -45 - +55 C
The working environment humidity of 100% non condensing
The level of protection IP20
The weight of 5.67kg
Dimension 265*190*126mm
3 year warranty
Optional accessories: Owrely-RD RTS temperature sensor, relay driver
